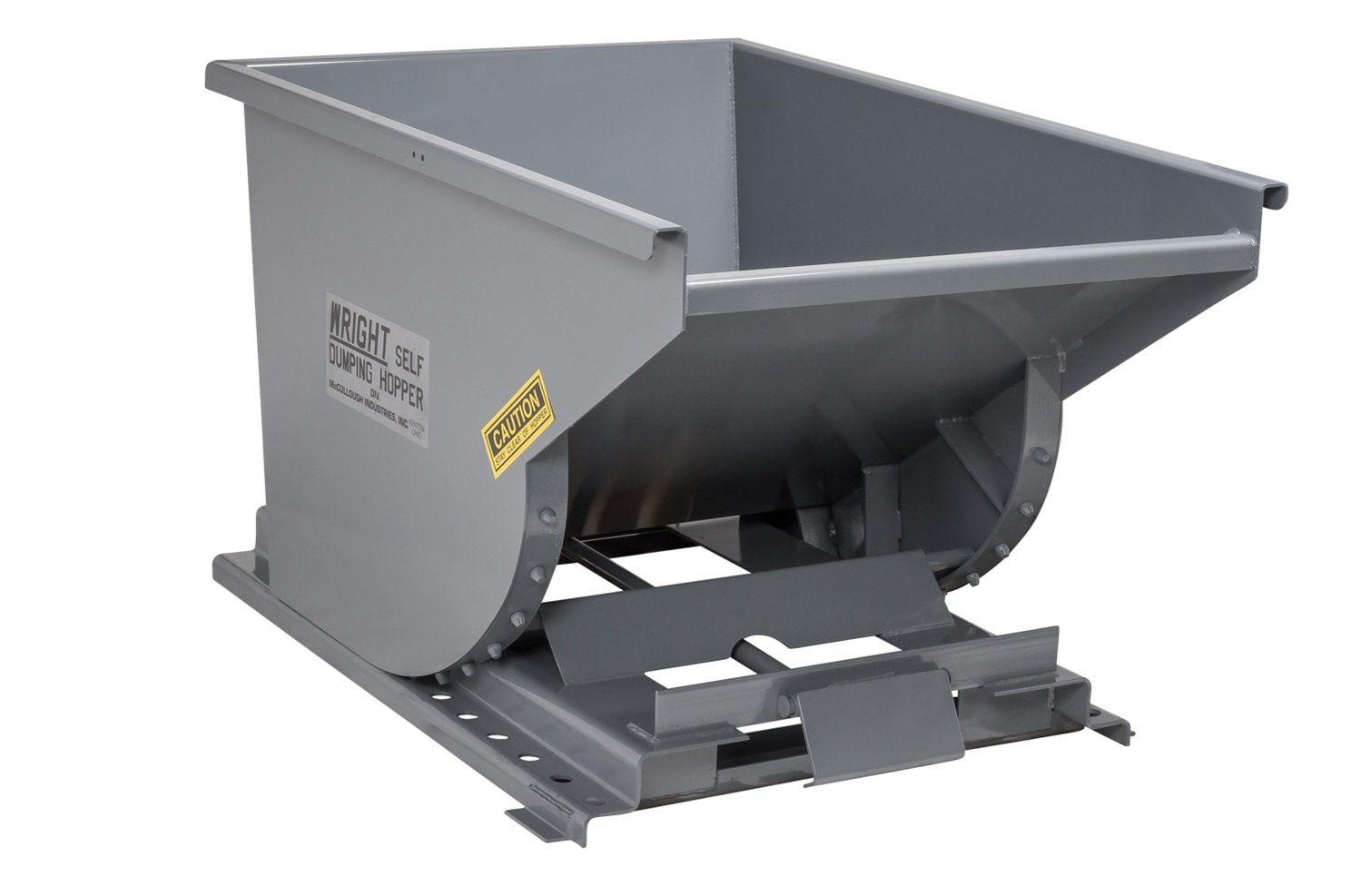

Item # 10055BR, 11 Gauge Wall Thickness and 7 Gauge Base Thickness Bump Release Self-Dumping Hopper
Engineered for safety and economy. Bump Release Hoppers are innovative and automatically dump on contact with the roll-off container. Hoppers are perfectly balanced to roll forward when loaded, dump completely and automatically return to upright, locked position ready for reloading. Continuous welding helps to prevent dripping of wet materials (leak-proof hoppers are available upon request). Formed smooth edge around top and pouring lip for safety and strength. Extended sides prevent side-wise scattering of material.
| Specification | |
|---|---|
| Brands | Wright |
| Volume Capacity | 1.0 yd³ |
| Overall Width | 39.75" |
| Overall Height | 39.75" |
| Overall Length | 67.5" |
| Fork Opening | 3" BY 28.5" |
| Pouring Lip | 3" |
| Container Length | 63.5" |
| Dump Clearance Height | 60.75" |
| Dump Clearance Bottom | 7" |
| Dump Clearance Length | 78.75" |
| Front Clearance | 9.5" |
| Base Width | 36.5" |
| Base Length | 58" |
| Dump Angle | 31° |
| Center of Gravity | 25.5" |
| Approximate Weight | 496 lb |
| Wall Thickness | 11 Gauge |
| Base Thickness | 7 Gauge |
| Features | Bumper Release Self-Dumping Stackable |
