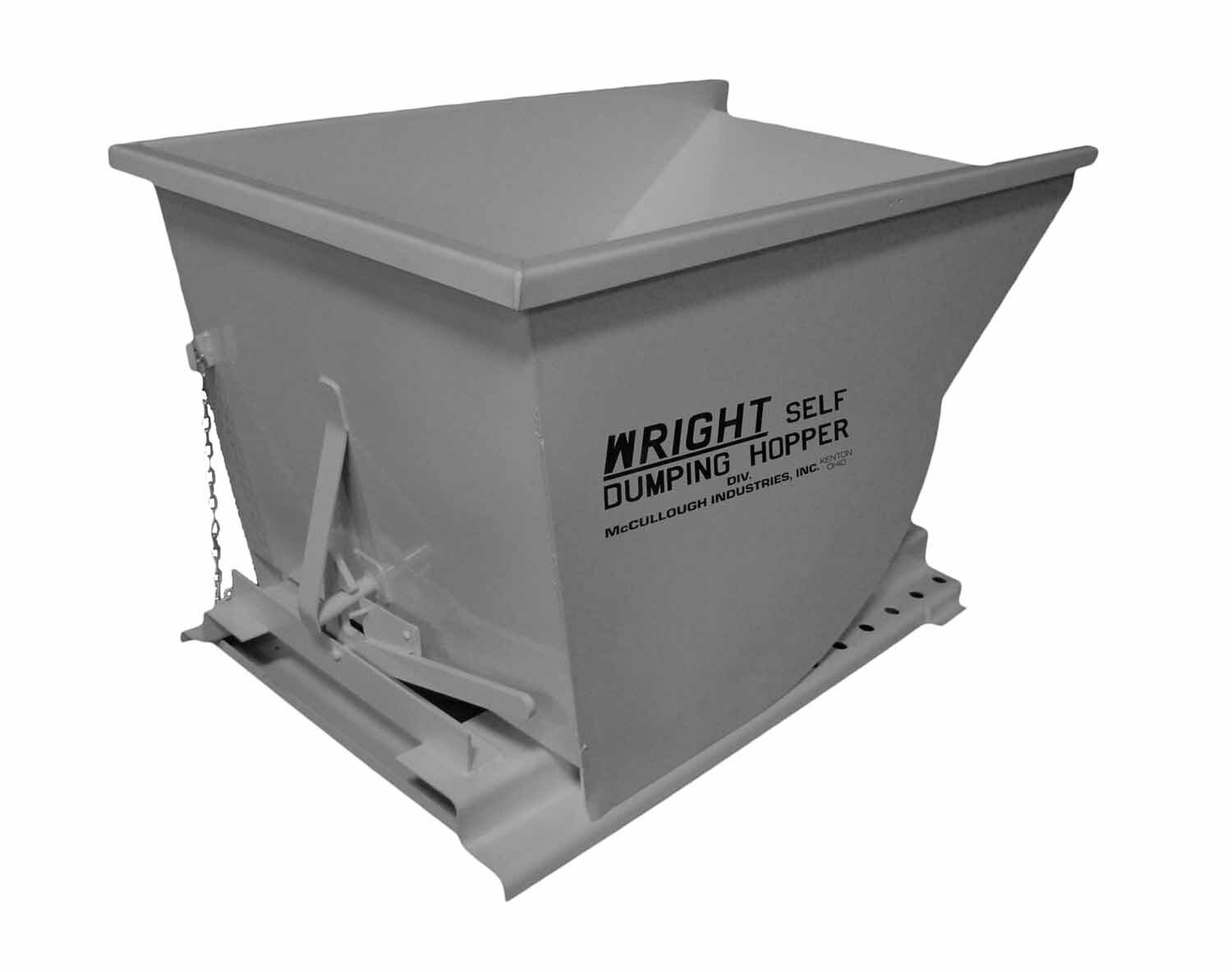

Item # 10099, Self-Dumping Hoppers

Item # 10099, Self-Dumping Hoppers

At McCullough Industries, we carry a wide range of material handling systems, supplying our customers with durable products that can endure years of heavy use. The Wright GEN II lines of standard, self-dumping hoppers are engineered with versatility in mind, with over 30 models to choose from.

The GEN II series features capacities that range from ¼ yard all the way up to 6 yards. With such a large selection, dimensions and specifications vary greatly. However, all GEN II hoppers are manufactured with heavy steel construction, 3” fork opening, low center of gravity, and a compact footprint. To learn more about Wright hoppers, contact us directly.

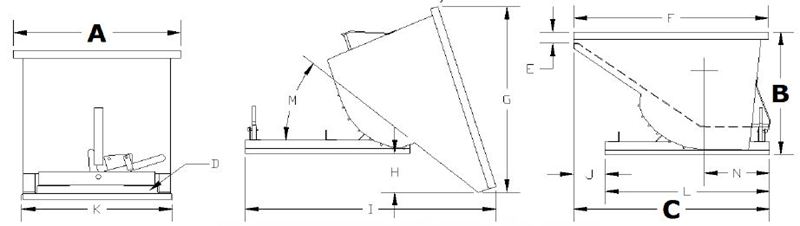

Note: All dimensions are approximate some dimensions may vary slightly per hopper.

Specification
Volume Capacity 1 yd³
Overall Width A 39.75 in
Overall Height B 39.75 in
Overall Length C 63.5 in
Fork Opening D 3 by 28 1/2 in
Container Length F 63 1/2 in
Dump Clearance Height G 60 3/4 in
Dump Clearance Bottom H 7 in
Dump Clearance Length I 78 3/4 in
Front Clearance J 9 1/2 in
Base Width K 36 1/2 in
Base Length L 54 in
Dump Angle M 31 º
Center Of Gravity N 25 1/2 in
Weight Capacity 7000 lb
Approximate Weight 610 lb
Pouring Lip E 3 in
