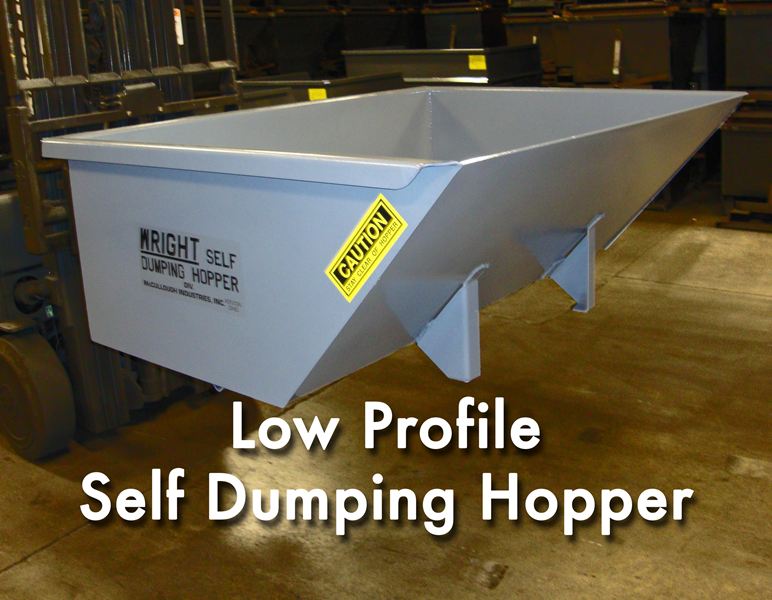

Item # 15077LP, Low Profile Dumping Hoppers

Item # 15077LP, Low Profile Dumping Hoppers

Series “55” 1/8″ Steel (12 Gauge) Hopper with 3/16″ (7 Gauge) Steel Base

Note: All dimensions are approximate some dimensions may vary slightly per hopper.

Specification
Volume Capacity 1.5 yd³
Overall Width A 62 in
Overall Height B 24 in
Overall Length C 75 in
Fork Opening D 2" x 48" in
Container Length F 67 in
Dump Clearance Height G 69 in
Dump Clearance Bottom H 36 in
Dump Clearance Length I 58 in
Front Clearance J 38.5 in
Base Width K 42 in
Base Length L 36 in
Dump Angle M 90 º
Center Of Gravity N 36.5 in
Weight Capacity 5000 lb
Approximate Weight 677 lb
Pouring Lip E 0 in
