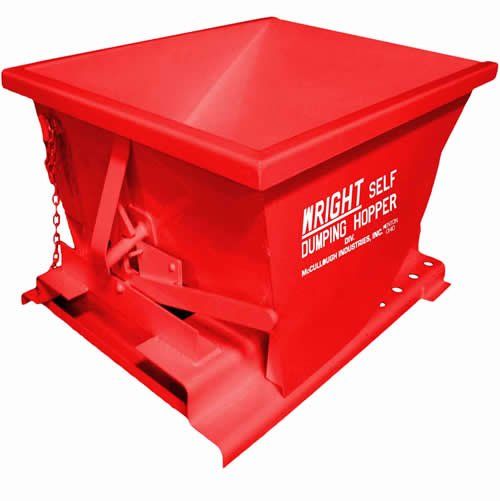

Item # 2555, Standard Self-Dumping Hoppers

At McCullough Industries, we carry a wide range of material handling systems, supplying our customers with durable products that can endure years of heavy use. The Wright GEN II lines of standard, self-dumping hoppers are engineered with versatility in mind, with over 30 models to choose from.
The GEN II series features capacities that range from ¼ yard all the way up to 6 yards. With such a large selection, dimensions and specifications vary greatly. However, all GEN II hoppers are manufactured with heavy steel construction, 3” fork opening, low center of gravity, and a compact footprint. To learn more about Wright hoppers, contact us directly.

Note: All dimensions are approximate some dimensions may vary slightly per hopper.

PDF Download
Compare

Specification

Volume Capacity 0.25 yd³
Overall Width A 33.75 in
Overall Height B 22.25 in
Overall Length C 44.75 in
Fork Opening D 3 by 22 1/2 in
Container Length F 41 3/4 in
Dump Clearance Height G 40 in
Dump Clearance Bottom H 2 1/2 in
Dump Clearance Length I 49 3/4 in
Front Clearance J 4 3/4 in
Base Width K 30 1/2 in
Base Length L 40 in
Dump Angle M 40 º
Center Of Gravity N 19 3/4 in
Weight Capacity 4000 lb
Approximate Weight 268 lb
Pouring Lip E 0 in

Packaging

Packaging N/A

Additional Information

Additional Information N/A

Downloads

Safe Operations Video Click Here
PDF File GEN-II-1-4-YD-DWG
