Item # 3355LP, Low Profile Dumping Hoppers

Series “55” 1/8″ Steel (12 Gauge) Hopper with 3/16″ (7 Gauge) Steel Base

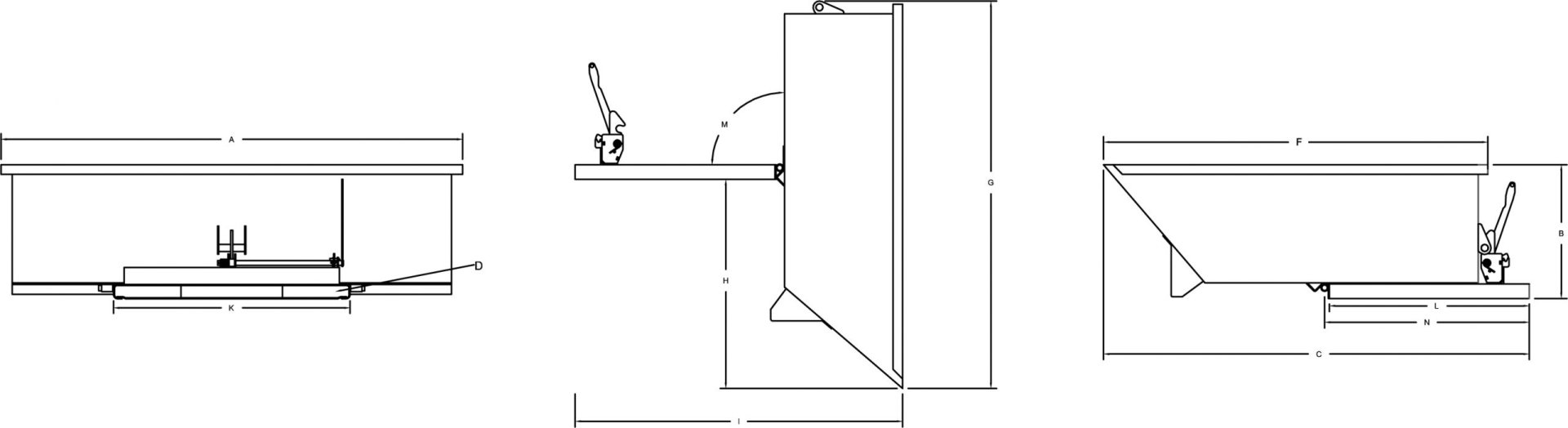

Note: All dimensions are approximate some dimensions may vary slightly per hopper.

Specification
Volume Capacity 0.33 yd³
Overall Width A 41 in
Overall Height B 17 in
Overall Length C 43 in
Fork Opening D 2 by 28 in
Container Length F 33.625 in
Dump Clearance Height G 38.5 in
Dump Clearance Bottom H 18.5 in
Dump Clearance Length I 37.75 in
Front Clearance J 20.75 in
Base Width K 28.375 in
Base Length L 22.25 in
Dump Angle M 90 º
Center Of Gravity N 23 in
Weight Capacity 4000 lb
Approximate Weight 295 lb
Pouring Lip E 0 in
