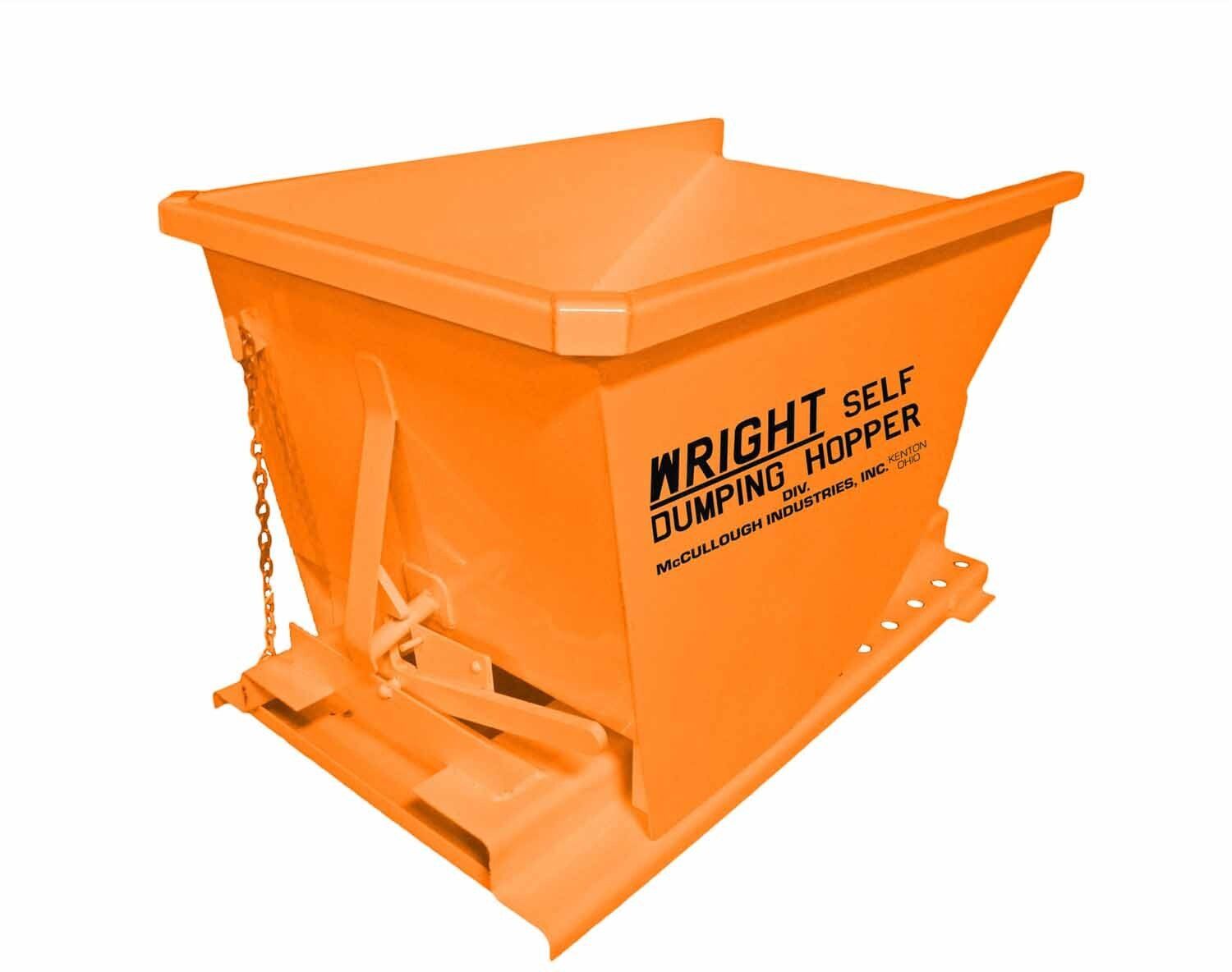

Item # 3399, Standard Self-Dumping Hoppers

At McCullough Industries, we carry a wide range of material handling systems, supplying our customers with durable products that can endure years of heavy use. The Wright GEN II lines of standard, self-dumping hoppers are engineered with versatility in mind, with over 30 models to choose from.
The GEN II series features capacities that range from ¼ yard all the way up to 6 yards. With such a large selection, dimensions and specifications vary greatly. However, all GEN II hoppers are manufactured with heavy steel construction, 3” fork opening, low center of gravity, and a compact footprint. To learn more about Wright hoppers, contact us directly.

Note: All dimensions are approximate some dimensions may vary slightly per hopper.

PDF Download
Compare

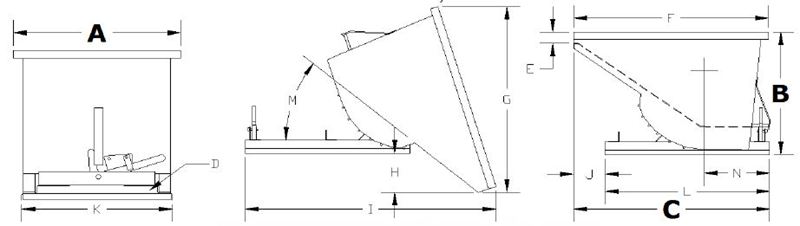

Specification

Volume Capacity 0.33 yd³
Overall Width A 31.75 in
Overall Height B 32.5 in
Overall Length C 52.5 in
Fork Opening D 3 by 20 1/2 in
Container Length F 51 1/4 in
Dump Clearance Height G 49 1/2 in
Dump Clearance Bottom H 3 1/2 in
Dump Clearance Length I 66 in
Front Clearance J 2 1/2 in
Base Width K 28 1/2 in
Base Length L 50 in
Dump Angle M 38 º
Center Of Gravity N 22 3/4 in
Weight Capacity 6000 lb
Approximate Weight 410 lb
Pouring Lip E 3 in

Packaging

Packaging N/A

Additional Information

Additional Information N/A

Downloads

Safe Operations Video Click Here
PDF File GEN-II-1-3-YD-DWG-2
