Item # 7577LP, Low Profile Dumping Hoppers
Series “77” 3/16″ Steel (7 Gauge) Hopper with 3/16″ (7 Gauge) Steel Base

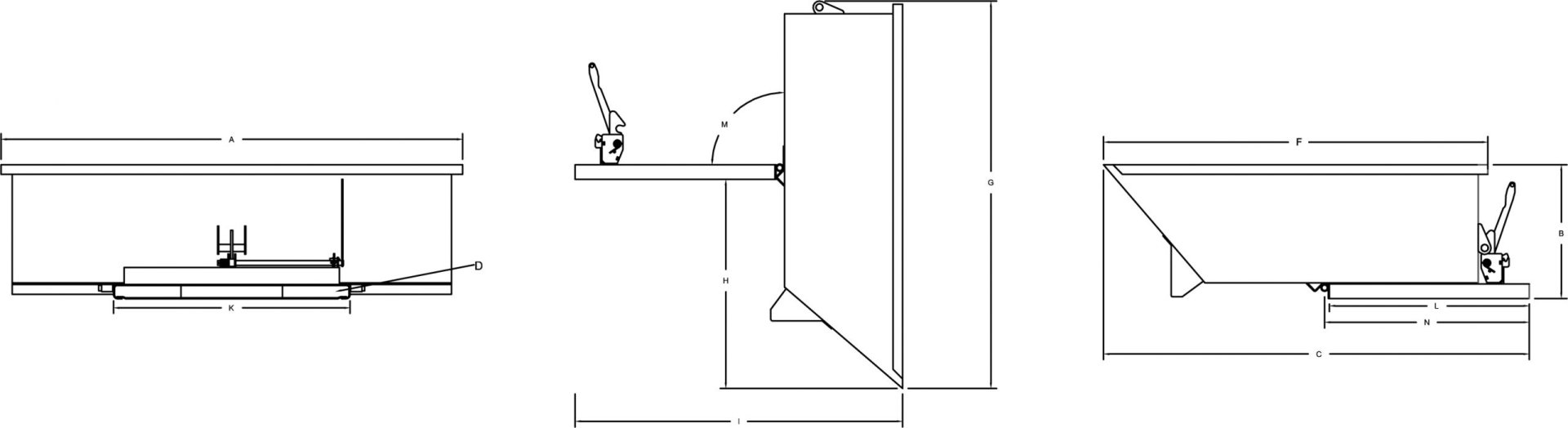

Note: 3/4 cu yd and 1 cu yd sizes have a rolled edge on both sides and back. For inside container width subtract 3 1/2″ from dimension “A”. For inside container length subtract 1 3/4″ from dimension “F”
All dimensions are approximate some dimensions may vary slightly per hopper.
- Specification
- Packaging
- Additional Information
- Downloads
-
Notice: Undefined index: title in /home/mcculloughind/public_html/wp-content/plugins/woocommerce/templates/single-product/tabs/tabs.php on line 38
Specification
| Volume Capacity | 3/4 yd³ |
| Overall Width A | 48 1/2 in |
| Overall Height B | 24 in |
| Overall Length C | 55 3/4 in |
| Fork Opening D | 2 by 28 in |
| Container Length F | 48 1/4 in |
| Dump Clearance Height G | 51 1/4 in |
| Dump Clearance Bottom H | 27 1/2 in |
| Dump Clearance Length I | 48 1/2 in |
| Front Clearance J | 30 in |
| Base Width K | 28 3/8 in |
| Base Length L | 25 3/4 in |
| Dump Angle M | 90 º |
| Center Of Gravity N | 28 1/8 in |
| Weight Capacity | 5000 lb |
| Approximate Weight | 455 lb |
| Pouring Lip E | 0 in |
Packaging
| Packaging | N/A |
Additional Information
| Additional Information | N/A |
Downloads
| Safe Operations Video | Click Here |
| PDF File | N/A |
