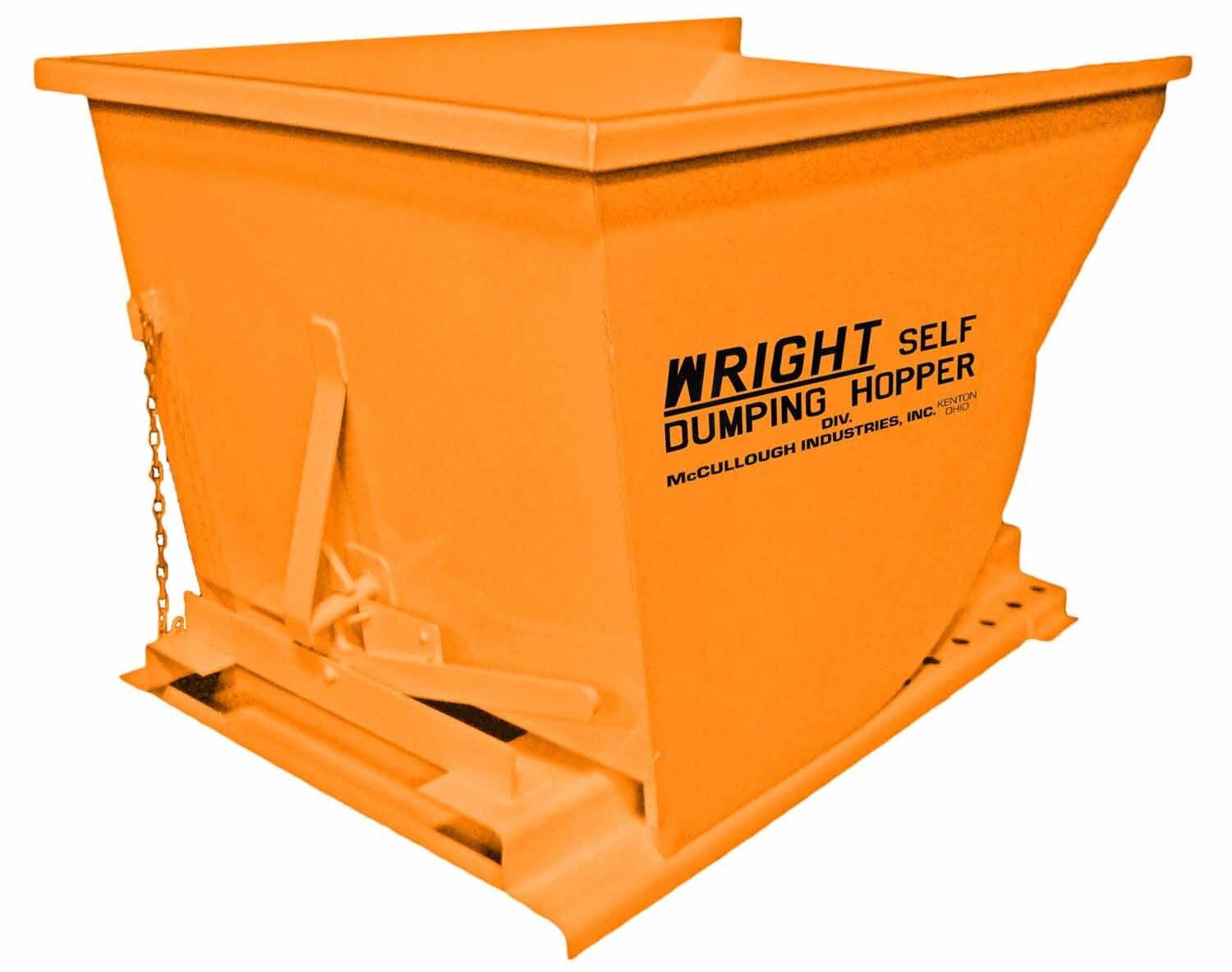

At McCullough Industries, we carry a wide range of material handling systems, supplying our customers with durable products that can endure years of heavy use. The Wright GEN II lines of standard, self-dumping hoppers are engineered with versatility in mind, with over 30 models to choose from.
The GEN II series features capacities that range from ¼ yard all the way up to 6 yards. With such a large selection, dimensions and specifications vary greatly. However, all GEN II hoppers are manufactured with heavy steel construction, 3” fork opening, low center of gravity, and a compact footprint. To learn more about Wright hoppers, contact us directly.
Note: All dimensions are approximate some dimensions may vary slightly per hopper.
Specification | |
---|---|
Volume Capacity | 0.75 yd³ |
Overall Width A | 39.75 in |
Overall Height B | 36.5 in |
Overall Length C | 58.75 in |
Fork Opening D | 3 by 28 1/2 in |
Container Length F | 58 in |
Dump Clearance Height G | 57 in |
Dump Clearance Bottom H | 9 in |
Dump Clearance Length I | 71 3/4 in |
Front Clearance J | 8 3/4 in |
Base Width K | 36 1/2 in |
Base Length L | 50 in |
Dump Angle M | 39 º |
Center Of Gravity N | 24 1/2 in |
Weight Capacity | 7000 lb |
Approximate Weight | 547 lb |
Pouring Lip E | 3 in |
